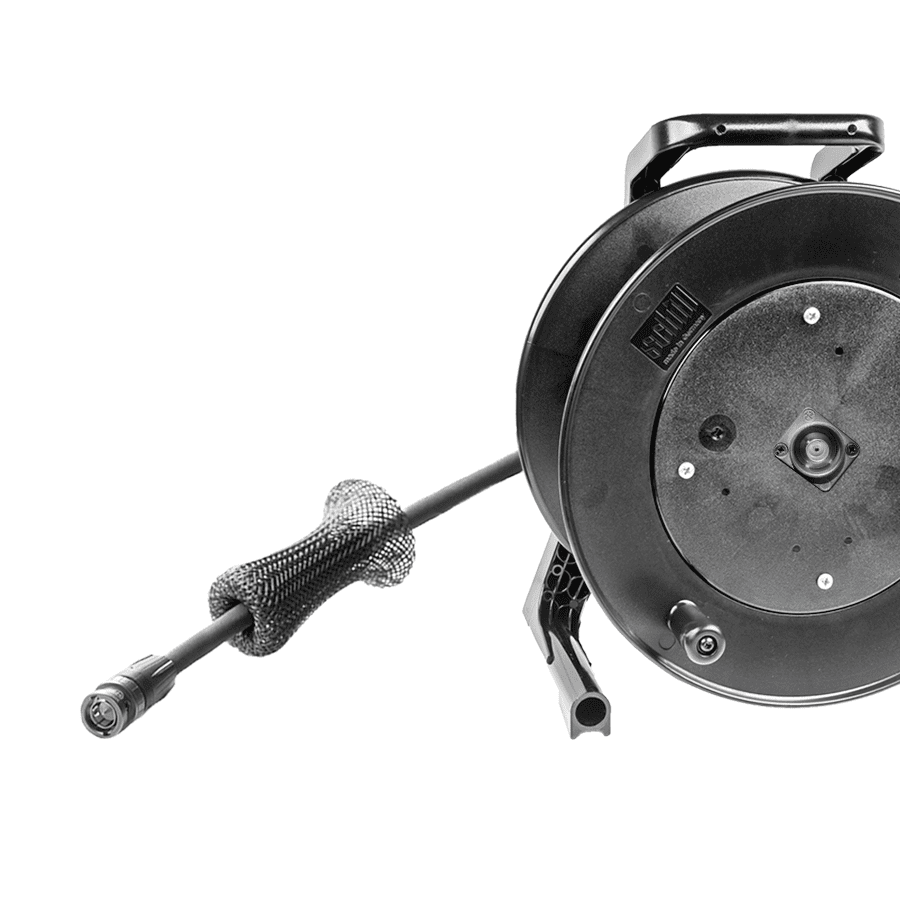

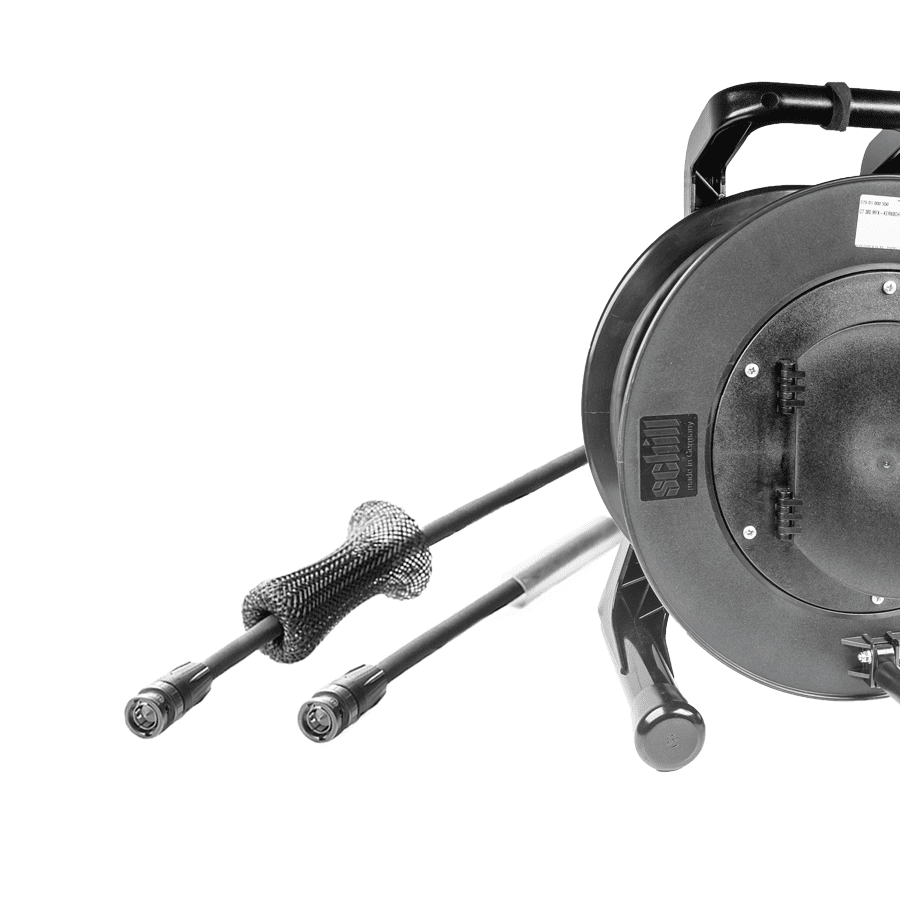

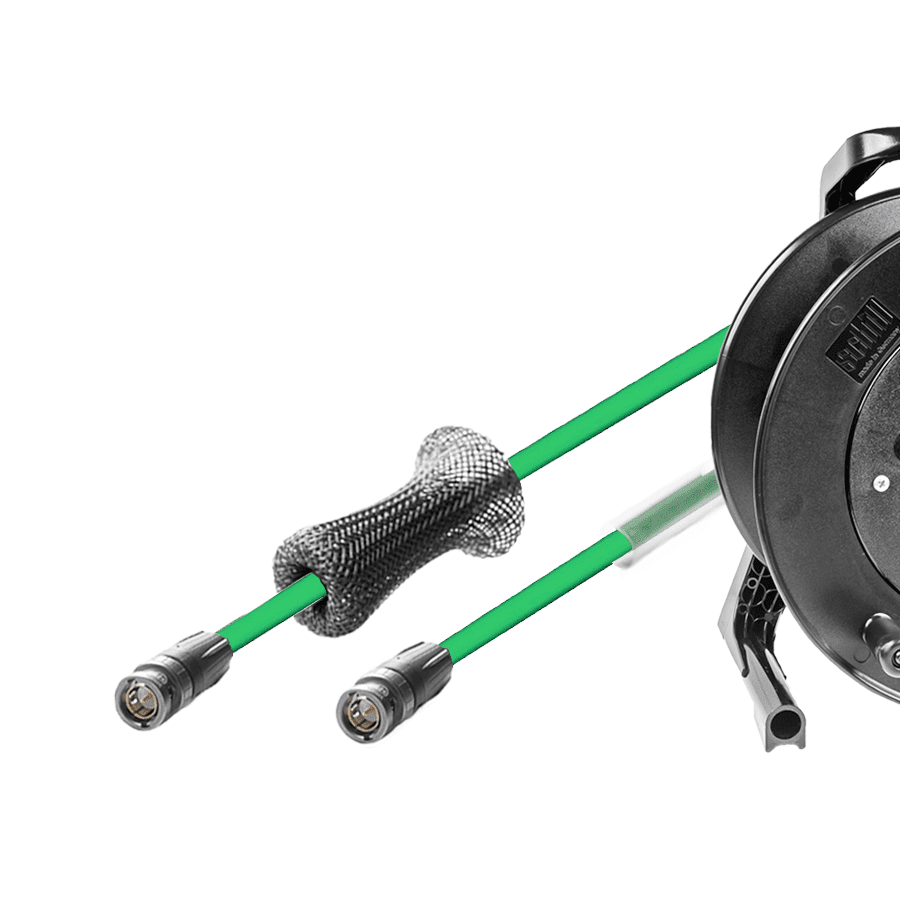

Video cable SDI 12G UHD PUR DRUM

1-12 of 12
For analogue and digital video signals (SDI / HD / UHD / 12G / 4K)

  • Draka abrasion resistant flexible UHD video cable 1.2L/4.8Dz with PUR jacket
  • rearTWIST UHD BNC connectors by Neutrik
  • Schill cable drum series GT rubber  with hinged door
  • provided with 2x 100mm heat shrink tubing for cable coding

MATRIX TO DETERMINE MAX. TRANSMISSION LENGTH in meters:

Draka Video Cables SDI/SDV
270MB/s		 1080i
1.5Gb/s		 1080p
3Gb/s		 Quad link
3Gb/s		 Dual link
6Gb/s		 Single link
12Gb/s
Max. Attenutation 30dB 20dB 20dB 40dB 40dB 40dB
0.8L/3.7Dz 263 67 49 89 58 40
1.0L/4.8Dz 285 80 51 92 61 43
1.2L/4.8Dz 323 94 63 113 74 50
1.2/5.0 UHD Flex 438 116 80 144 98 62
Only on stock
Weight
7.70 kg
Dimensions (mm)
320.00 x 245.00 x 365.00 (W/H/L)
Weight
5.40 kg
Dimensions (mm)
230.00 x 235.00 x 365.00 (W/H/L)
Weight
9.30 kg
Dimensions (mm)
320.00 x 250.00 x 360.00 (W/H/L)
Weight
7.92 kg
Dimensions (mm)
315.00 x 235.00 x 360.00 (W/H/L)
Weight
8.12 kg
Dimensions (mm)
320.00 x 240.00 x 360.00 (W/H/L)
Weight
4.60 kg
Dimensions (mm)
320.00 x 240.00 x 365.00 (W/H/L)
Weight
16.00 kg
Dimensions (mm)
395.00 x 330.00 x 495.00 (W/H/L)
